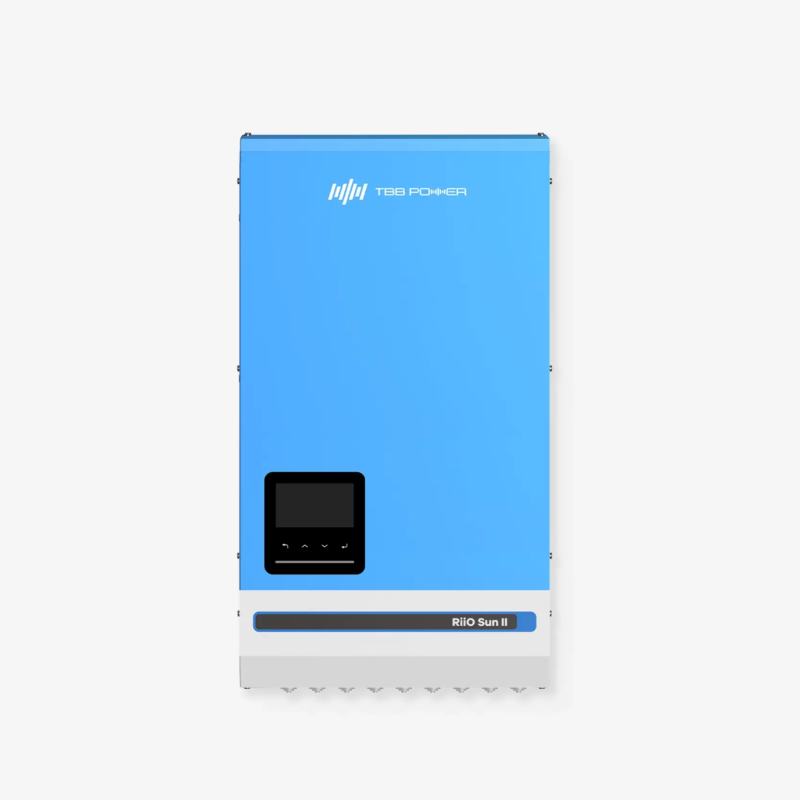

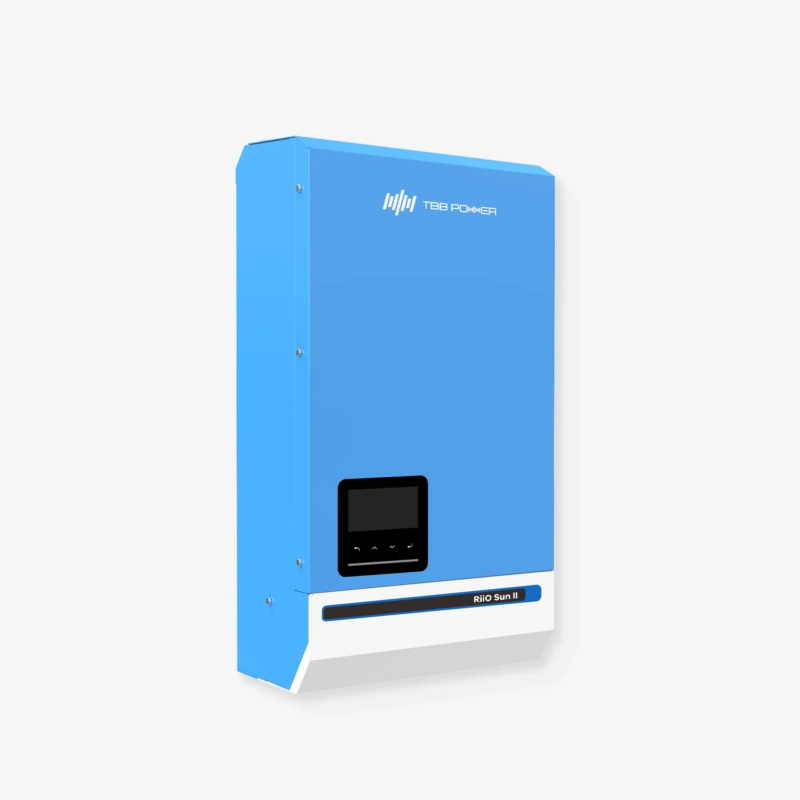

TBB Riiosun II 8kW 48v Hybrid Solar Inverter

Description

TBB Riiosun II 8kW 48v Specifications:

• • Nominal battery voltage 48(V)

  • Max AC charge current 90(A)

  • Max solar charge current 100(A)

  • Number of MPPT trackers 2

  • Maximum PV power per tracker 4400 + 4400(W)

  • Smart Port Yes

  • Maximum PV open circuit voltage 250(V)

  • Protection index IP21

• All-in-one, plug and play design for easy installation
• Transformer-based, easily withstand the initial surge current
• Versatile for solar off-grid, ESS, self-consumption and backup power system
• Support parallel and three-phase
• Support energy feeding back into grid
• Maximize self-consumption
• Optional to work without battery
• Auto restart when the PV or AC is recovering
• Higher PV open circuit voltage
• Higher PV charging power and current
• 2 MPPT trackers for 8KVA
• Programmable output relay for generator start and stop
• A programmable smart port for 8KVA
• Ultra-short transfer time (2ms) for mission-critical loads
• Better display interface design and better human machine interface
• Power assist and power control
• Built-in ECO Mode to prolong the battery backup time
• Compatible with mainstream lithium battery brands
• Max inverter efficiency 94%, max MPPT efficiency 98%
• Extremely low self-consumption power
• Remote monitoring and control via Nova Web & APP
• Fully programmable by APP

Benefits:

• Multiple applications: Suitable for DC coupling systems, solar hybrid systems, or backup power systems.
• Easy installation: All-in-one design simplifies setup.
• Versatile power management:
  • Works with generators to handle larger loads.
  • Eco mode for energy saving.
  • Load boost function for powering heavy-duty appliances.
• High efficiency: Up to 94% inverter efficiency and 98% MPPT efficiency.
• Reliable performance: The TBB Riiosun II 8kW 48v Handles inductive loads and provides accurate battery status estimation
